Picture: Lake Fyans

The Wimmera Mallee Domestic and Stock Channel System, covering 2.9 million hectares, was one of the largest water supply systems in the world.  It originally extended from the Grampians in central western Victoria to Ouyen and Manangatang in the north, Underbool in the west and Korong Vale in the east.

Water was supplied through approximately 17,500 kilometres of earthen channels, supplying 36 towns and about 20,000 farm dams. By the time this water reached the extremities of the system, up to 85% had been lost through seepage and evaporation. This was clearly an intolerable waste of a scarce resource.



ChannelStructure

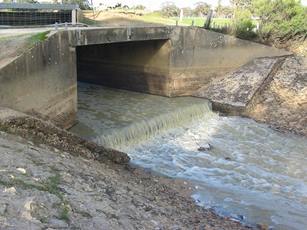

A concrete channel structure



History

The Wimmera Mallee channel system began in the 1860s when the region’s pioneers attempted to harvest water from rivers and creeks with diversion weirs. In about 1856 the Wilson Brothers of Longerenong diverted Wimmera River water into Ashens and Yarriambiack creeks. This not only marked the first step towards establishing the water supply system, but was also the first water conservation effort in Victoria.

With farmers transporting water from up to 50km away, shire councils helped by constructing dams, weirs and other works needed to store and supply water. The first storage was Wartook Reservoir, which was built on the MacKenzie River in the mid 1880s by the Wimmera Shire. The main sources of supply for the system were the Wimmera River and Mount William Creek. Water shortages and crop failures resulted in the construction of Lake Lonsdale in 1903. Although water supply to the area was improved, divided control of the headwaters caused difficulties, which were only overcome when the State Rivers and Water Supply Commission of Victoria (SR&WSC) took control of all water supplies to the region in 1906.

Using natural watercourses for the initial distribution of water caused heavy water losses, and channels were rapidly extended between 1906 and 1931. The channel system increased from 1,600km serving 8,550sqkm to 9,600km serving 28,500sqkm. New channels included the Glenelg River Diversion Channel, which was constructed in 1930 to divert Upper Glenelg winter flows into the Wimmera storages. Lake Fyans and Taylors and Pine lakes were constructed during this period, with Moora Reservoir built in 1933 to store flood waters of the upper Glenelg River for diversion into the system. In an effort to keep pace with regional development, the largest reservoirs, Rocklands and Toolondo, were completed in 1953. The final storage to be constructed, Lake Bellfield on Fyans Creek in the Grampians, was completed in 1967.

WimmeraMalleeChannelConstructionWithHorses

Using horses to construct a supply channel



Replacing the channel system

High levels of evaporation and seepage from the channel system were key motivators for the regional push for a piped supply system, which led to the construction of the Wimmera Mallee Pipeline. This $688 million project saw the channel system replaced by a 9,159 kilometre piped water supply system in early 2010.



Decommissioning channels

With the Wimmera Mallee Pipeline in operation, channel decommissioning of large channels and structures was completed in 2014. Many smaller channels and structures still remain, which were unable to be decommissioned within the project budget. Today, landowners continue to decommission the remaining smaller channels. Where a channel is retained for a drainage purpose, ownership will be transferred to the landowner or responsible entity.



DecommissionedChannel

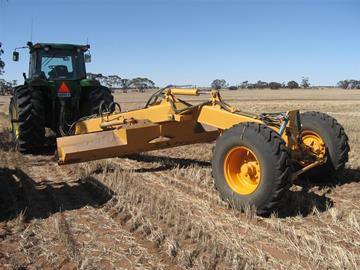

Using a tractor and tow grader to decommission a channel



Map of the channel system

View a map of the historic Adobe PDF file icon 24x24Wimmera Mallee Channel System (2.18MB)



Further information...



Books about our water supply

Information about the history of our water supply and constructing the Wimmera Mallee Pipeline is available from these books and articles.



Constructing the Wimmera Mallee Pipeline

The Wimmera Mallee Pipeline Project was one of the largest water infrastructure projects in Australia, replacing 17,500 kilometres of inefficient open channels with 9,159 kilometres of rural pipeline.



A history of our headworks - 'No Water No Life' series

The 'No Water No Life' series is an historic look at our headworks system.
